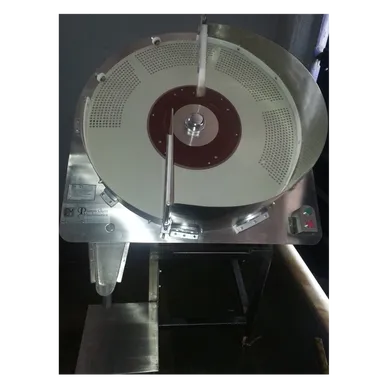

The Rotary Capsule & Tablet Counting and Packing Machine is designed to accurately count and fill capsules or tablets into bottles with high speed and precision. Compact in design, it ensures smooth operation with minimum floor space utilization while delivering increased productivity and superior accuracy in packing.
The machine uses a rotating disc and advanced sensors to count and fill capsules or tablets, eliminating the need for manual counting. A task that usually takes several minutes can now be completed in seconds with unmatched precision. This enhances production efficiency and reduces labor dependency and packing errors.
Synonyms: Capsule Counting Machine, Tablet Counting & Bottling Machine, Rotary Counting System
Application: Counting and filling capsules/tablets into bottles or containers for pharmaceutical and nutraceutical industries.
Suitability: Hard Gelatin Capsules, Soft Gelatin Capsules, HPMC Capsules, Tablets (round, oval, coated, uncoated)
Versions: Semi-Automatic Counter, Fully Automatic Rotary Counter
Salient Features
-
Compact and GMP-compliant model for cleanroom operations.
-
Accurate IR-based counting system to ensure precise counts every cycle.
-
High-speed output with minimal operator intervention.
-
User-friendly controls suitable for semi-skilled operators.
-
Adjustable bottle holders and guides for multiple container sizes.
-
Low maintenance and easy to clean parts.
-
Dust extraction and anti-dust system for smooth operation.
-
Automatic bottle stop and start during count cycles.
Technical Specification
| Feature | Specification |
|---|---|
| Production Output | Up to 50,000 Capsules/Tablets per hour (depends on count & bottle size) |
| Suitable Products | Capsules (Hard Gelatin, HPMC, Veg), Tablets (coated/uncoated, round/oval) |
| Number of Channels | 8 to 12 Channels (model dependent) |
| Counting Mechanism | High-speed IR Sensor-based rotary disc system |
| Container Compatibility | PET, Glass, HDPE Bottles |
| Container Size Range | 30 ml to 1000 ml |
| Power Requirement | 220 Volts, Single Phase, 50 Hertz |
| Compressed Air | 4–6 Bar (if equipped with dust extraction system) |
| Control System | PLC Controlled with Touchscreen Interface |
| Bottle Feeding System | Automatic or Manual Feeding Option |
| Filling Accuracy | ±1 Capsule/Tablet per bottle |
| Overall Dimensions | 900 mm (L) x 700 mm (W) x 1500 mm (H) approx. |
| Net Weight | 150 Kgs approx. |
| Gross Weight | 200 Kgs approx. |
