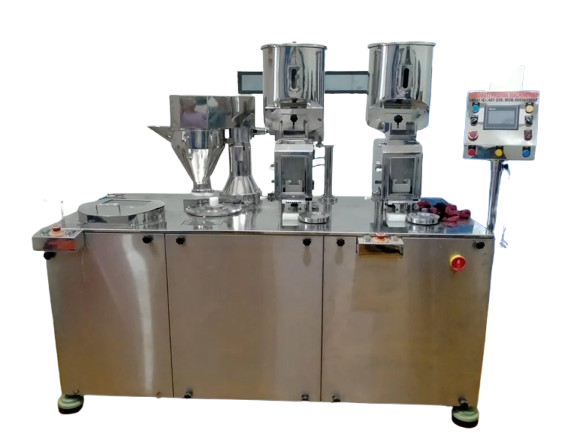

Double Loader Semi Automatic Capsule Filling Machine features an innovative design and equipped with outstanding features. The machine offers precision capsule filling and manufacturing and is completely cGMP compliant in terms of operational efficiency and productivity.
This machine is also known as high speed capsule filling machine and it has a vast production capacity. It can produce approximately 45,000 capsules/ hour. It is user-friendly and precision engineered to fill powders and pellets. Sturdy construction and higher outputs are the hallmarks of this fabulous capsule pellet filling machine. It has a special hopper that is designed for easy dismantling and cleaning. In case you need to change parts, you must know that it is not a hassle either. Utmost operational safety can be achieved due to automatic closing and ejection capabilities.
Salient Features
- cGMP model.
- Suitable to fill up to 45000 capsules per hour.
- Loader gets disengaged automatically after one complete rotation of loading ring.
- Programmable Logic Control (PLC) & display of all operations.
- Augur with four speeds to fill different type of powder & pellets.
- Modified design of drug hopper reduces time for dismantling and unloading powder.
- Auto-drug hopper in-feed mechanisms reduce weight variations & improve productivity.
- All the drive elements and the cabling at the right side separate panel.
- Crevice free smooth stainless steel pharmaceutical grades.
- Modified design of drug hopper reduces time for dismantling & unloading of powder.
- Loader station which accepts too less change over time of different capsule size change parts.
- Filling station which accepts too less change over time of powder to pellets.
Technical Specification
| Model | ASCF – 45 |
| Production Output | Up to 45,000 capsules/hour |
| Capsule Size | 00/0/1/2/3/4/5 with suitable parts |
| M.O.C. of Loading Ring | Magnesium Alloy |
| M.O. C. of Contact Parts | Stainless Steel 316 |
| Number of Ring | Single |
| Number of Holes | Size 00: 480 Size 0: 600 Size 1, 2,3, 4 & 5: 720 |
| Power Supply | 6 H. P. |
| Power Voltage | 415 Volts, 3 Phase, 50 Hertz |
| Compressed Air | 8 CFM at 100 PSI |
| Machine Dimensions | 2200mm x 1300mm x 1600mm approx. |
| Net Weight in Kgs. | 950 Kgs. approx. |
